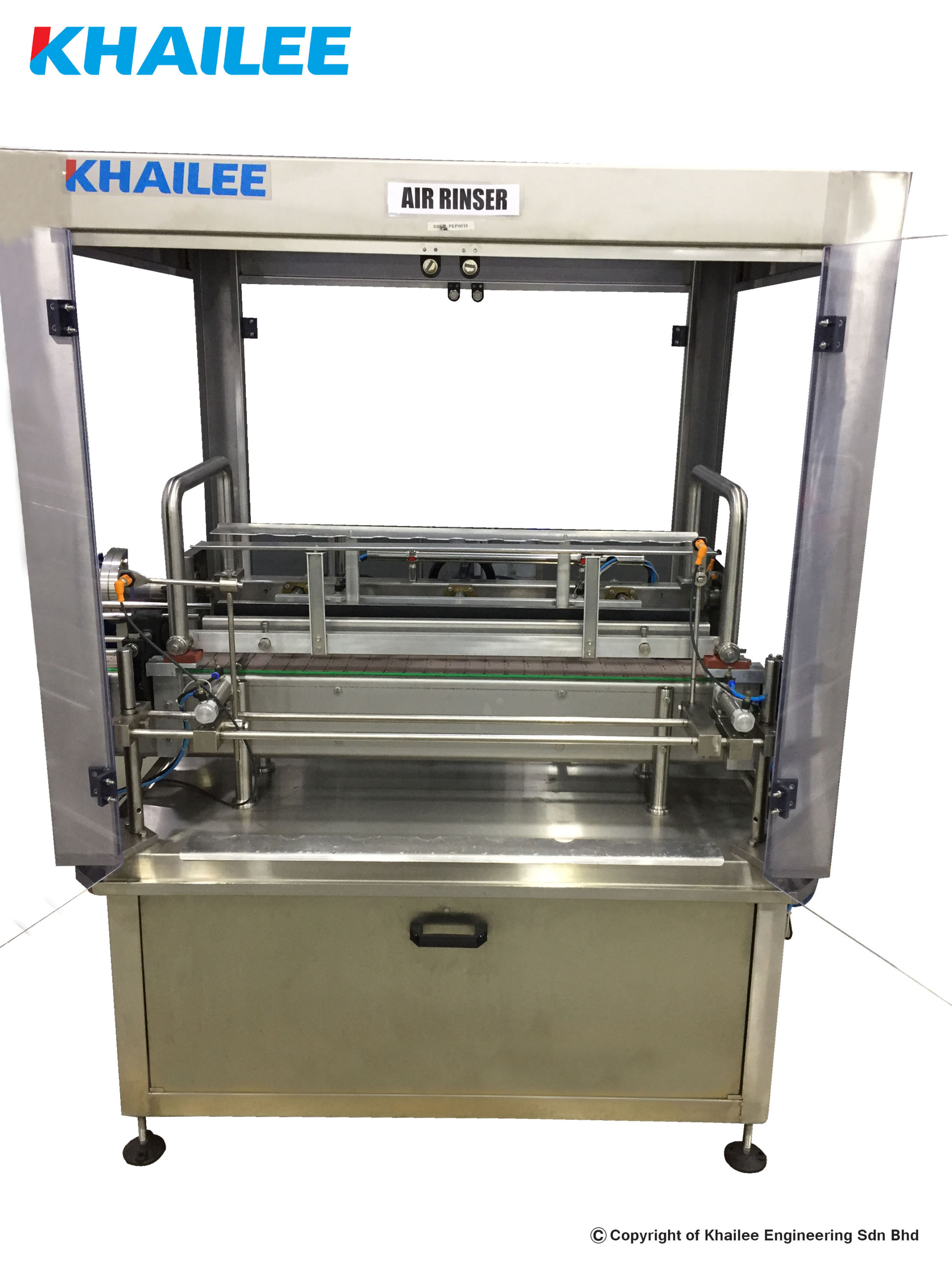

AUTOMATIC IN-LINE BOTTLE RINSER

Automatic In-Line Bottle Rinser Khailee Engineering

Automatic In-Line Bottle Rinser is suitable for glass and plastic bottles, and they are also capable of dealing with large size bottles. This machine uses its gripping holders to reverse the bottle on the water jet nozzles, where the water spraying will be initiated and stop once it completed the desired rinsing time. The rinsed bottles will then bring back to the original position and transfer out by conveyor, so it can continue to the next cycle.

Application

Bottle Rinsing

Features

  • Special Rubber Gripper - Reduce the potential damage of bottle
  • Water Recycle Tank - Reduce Water usage by using filtered recycled water
  • Durability - Made of high grade of stainless steel
  • Reliability - Low Maintenance & Stable Operation
  • Electric Control Panel - User friendly to operate

Standard Accessories

  • Stainless Steel 304 Construction and Frame
  • Spray Nozzles
  • Bottle Gripper
  • Inbuilt Stainless Steel Conveyor with Adjustable Guide Rails
  • Stainless Steel Recirculation Tank, circulation pump and filter
  • Electric Control Panel

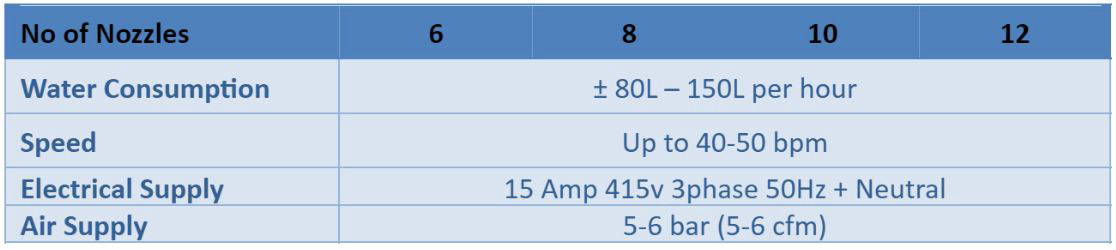

Technical Specification

Automatic In-Line Bottle Rinser technical specification Khailee Engineering
