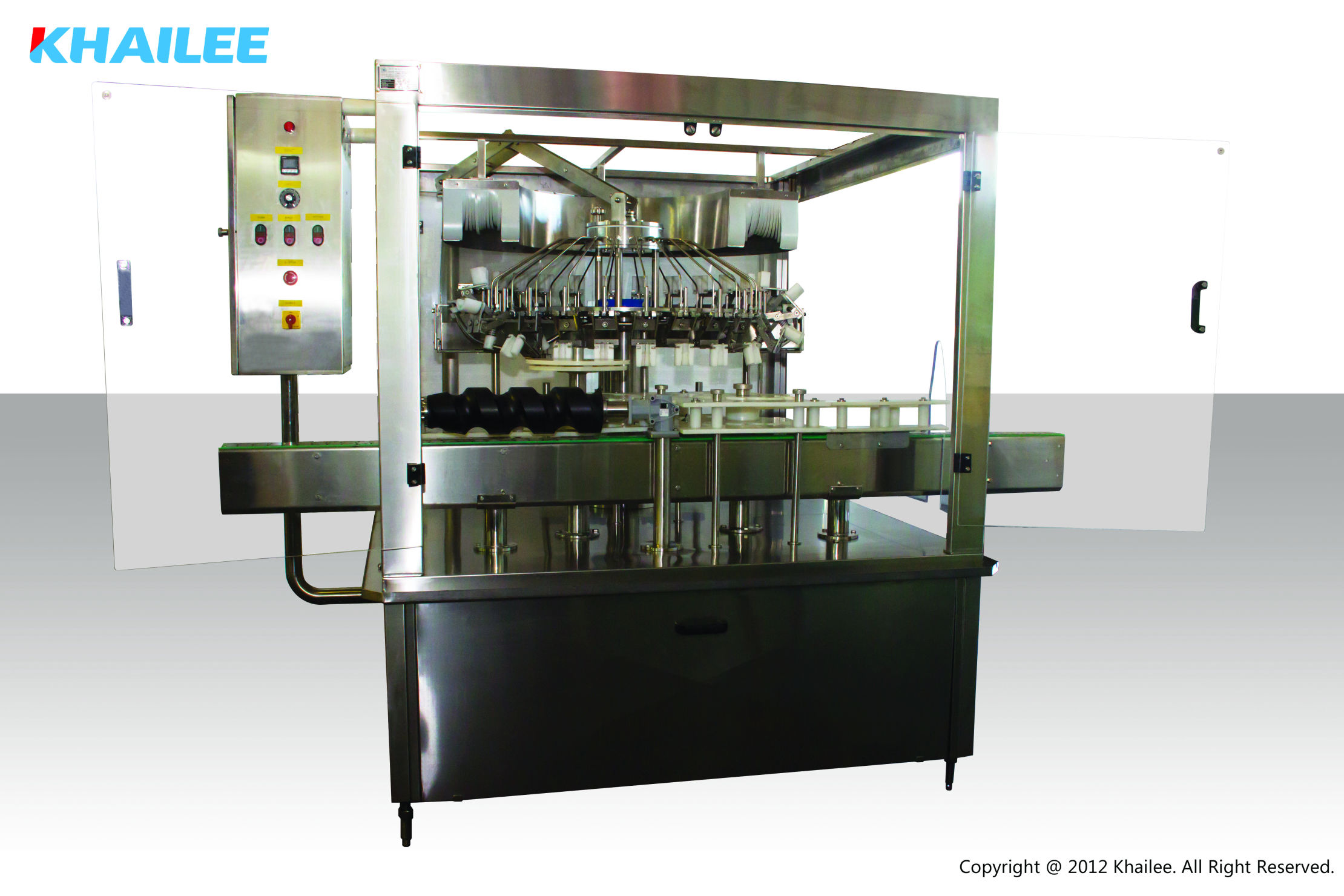

AUTOMATIC ROTARY BOTTLE RINSING MACHINES

Automatic Rotary Bottle Rinsing Machine Khailee Engineering


Bottling Rinsing Machine is used in a wide application in beverages, pharmaceuticals, mineral water industries etc. The purpose of this is machine is to clean glass or plastic containers that may have dust or other contaminations. The Automatic Rotary Rinsing Machine is designed to operate as a stand-alone automatic bottle rinsing system. It is capable of rinsing different type of media including hot water and compressed air. The machine incorporates with inbuilt conveyor, infeed screw worm, bottles gripper and star wheel as standard equipment. A complete set of Stainless Steel Collect Tank, Circulation Pump and Filter are also supplied for water circulation system.

Application

Bottle Rinsing

Features

  • Special Rubber Gripper - Reduce the potential damage of bottle
  • Durability - Made of high grade of stainless steel
  • Reliability - Low Maintenance & Stable Operation
  • Electric Control Panel - User friendly to operate

Standard Accessories

  • Stainless Steel 304 Construction and Frame
  • Spray Nozzles
  • Bottle Gripper
  • Inbuilt Stainless Steel Conveyor with Adjustable Guide Rails
  • Stainless Steel Recirculation Tank, circulation pump and filter
  • Electric Control Panel

Optional

  • In-Feed and Out-feed Turntable

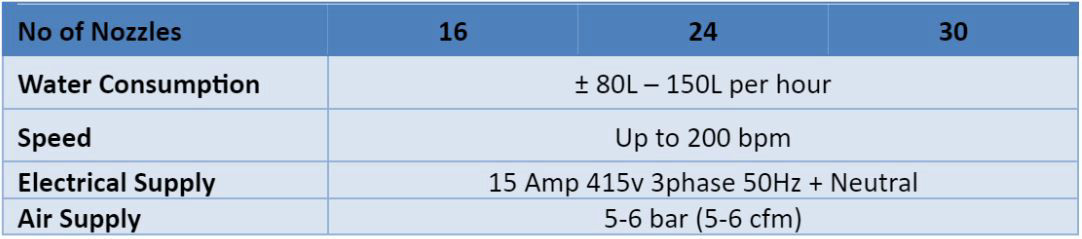

Technical Specification

Automatic Rotary Bottle Rinsing Machine technical specification Khailee Engineering
