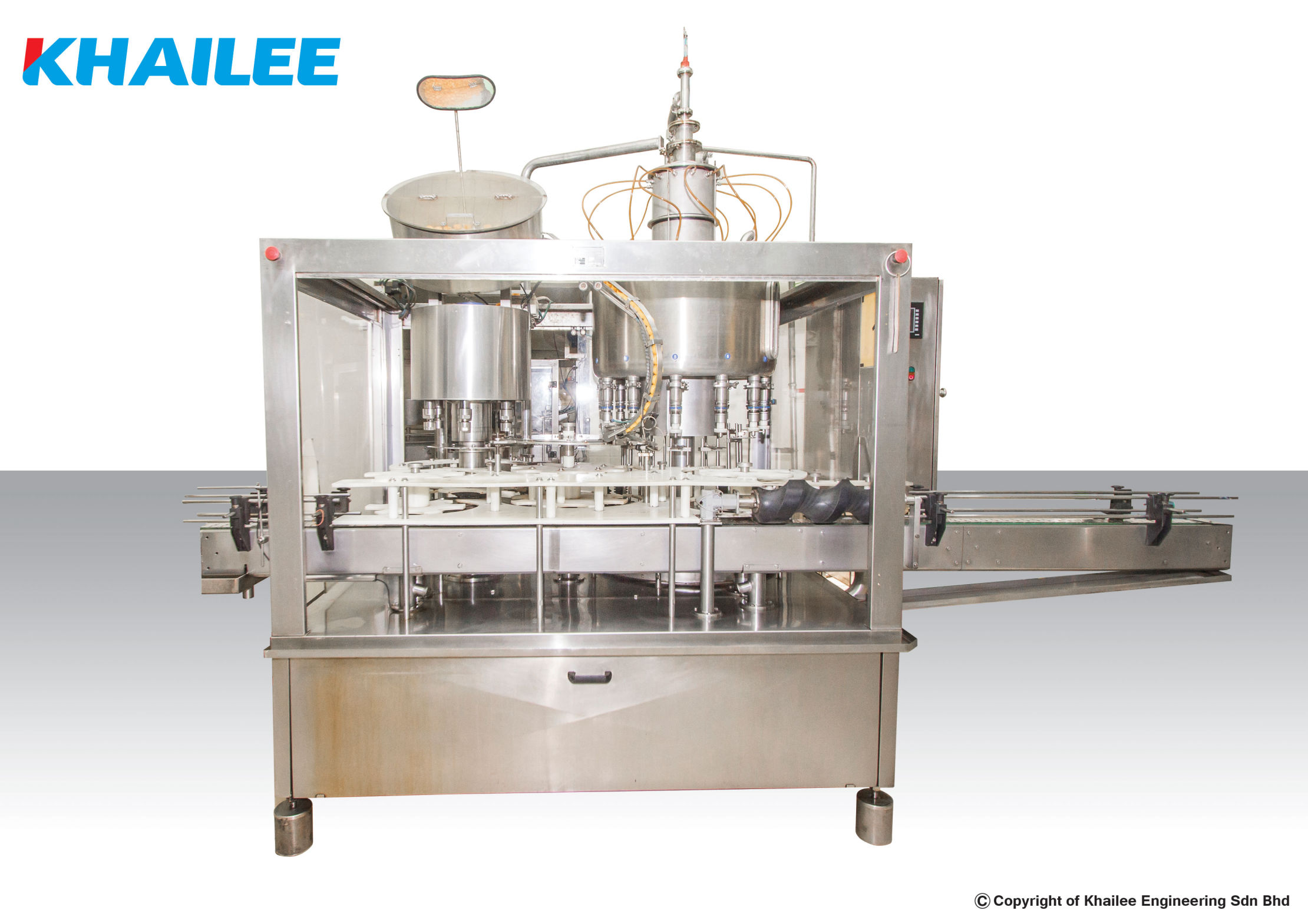

ROTARY VACUUM FILLING AND CAPPING MACHINE

Our Vacuum Filling Machine is a machine with a double chamber filling system for level filling of non-carbonated and other products into glass or PET bottles. The Filler is operated with principle of “Filling Under Negative Pressure’’ with adjustable vacuum in the filled bottle and which the vacuum is obtained vacuum pump for ensuring smooth and continuous operation. This leads to higher machine productivity and high accuracy of filled level.

The benefit of vacuum fillers is they provide a constant fill level as when the level in the bottle being filled rises to the vacuum tube the product starts to suck out of the bottle. The machine is compact in consists of filling and capping station in one frame producing a high rate output.

Features

  • High Speed – Up to 200 bottles per min (Subject to product and container specifications)
  • High Accuracy – ±3%
  • Durability – Made of high grade of stainless steel
  • Reliability – Low Maintenance & Stable Operation
  • No Bottle No Fill – To prevent wastage and cleaner filling operation
  • Change Parts – For 2 or 3 different specifications of container/ Simple and easy to change parts for different bottle and cap sizes.
  • No Product No Fill – Products are detected by sensor and stop the filling operation
  • Omron PLC Control & Touch Screen System – For Ease of operation
  • Variable Speed Control – To ensure synchronization of machine and conveyor
  • Individual Volume Control – Limited to piston filling machine
  • No Bottle No Cap Mechanism – Bottles are detected by sensor to stop the cap delivery
  • Pick and Place Capping Mechanism – To deliver better capping effect
  • Cap bowl & Cap Chute – Vibrating cap loading system and reverse cap return function
  • Adjustable Cap Torque – For fine and smooth capping operation
  • Electrical Vacuum Pump – For smooth filling adjustment

Optional

  • In Feed / Out Feed Turntable
  • Cap Elevator
  • All Contact Parts made of Stainless Steel 316/ Stainless Steel 316L
  • Specialty pump, seals, and hose for unique product types

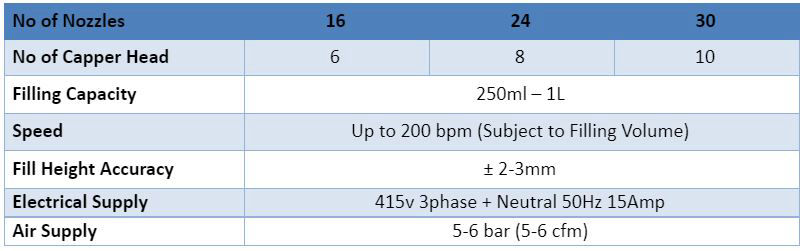

Technical Specification
